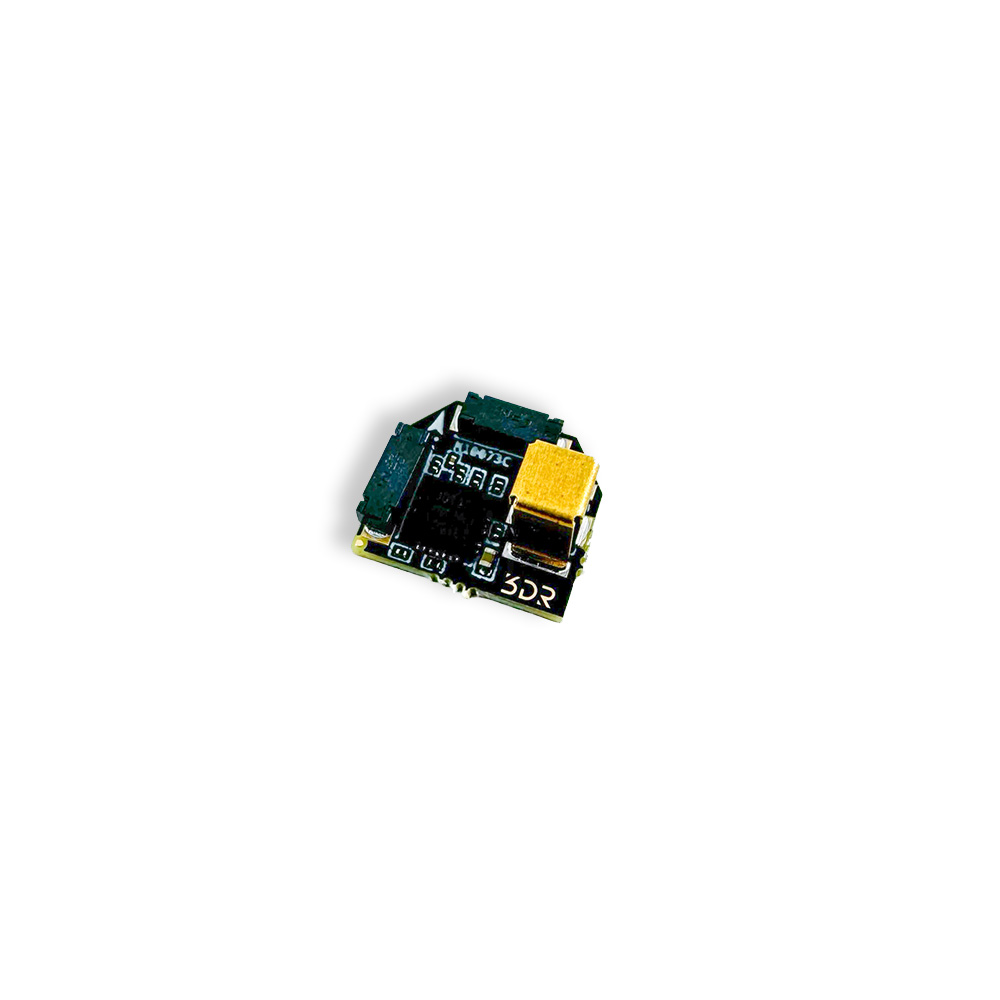

RM3100 Sensor breakout - M10073
The 3DR M10073 is a sensor-on-board assembly that was first designed for in-house designs, but made available later. Designed to integrate PNI's RM3100 sensor suite at the board level, we bring this solderable module to lower complexity and bring down costs for your project.
More info about the sensor can be found here.
| Specification | Value |
|---|---|
| Dimensions | 13 x 11.05 x 8.1 mm |
| Weight | 0.82 g |
| Sensitivity | 13nT |
| Noise | 15nT |
| Linearity over ± 200 uT | 0.50% |
| Field Measurement Range | ± 1100 uT |
| Current @ 8Hz, 3 Axes | 260 uA |
| Interface | SPI and I2C |
| Operating Temperature | -40°C to +85°C |
For electrical specifications and function description please refer to the datasheet.
