Mini GPS M10S - M10136

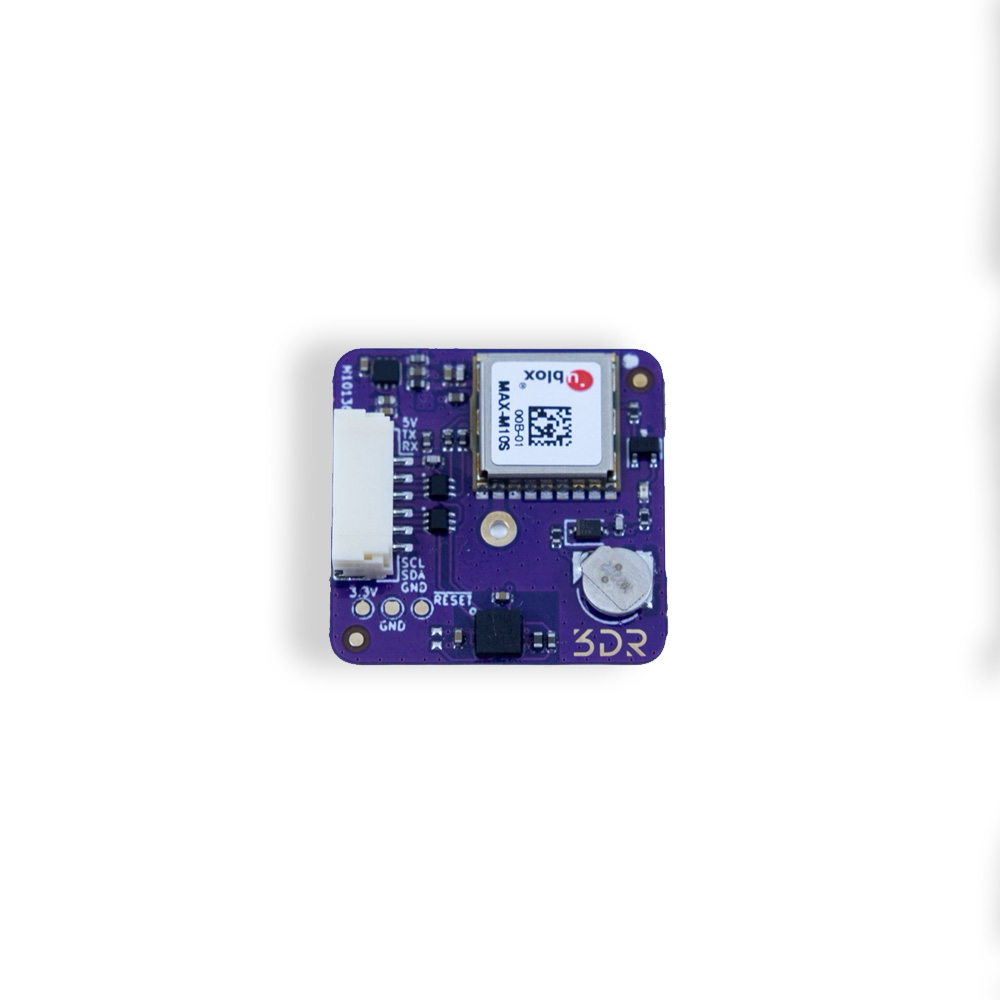

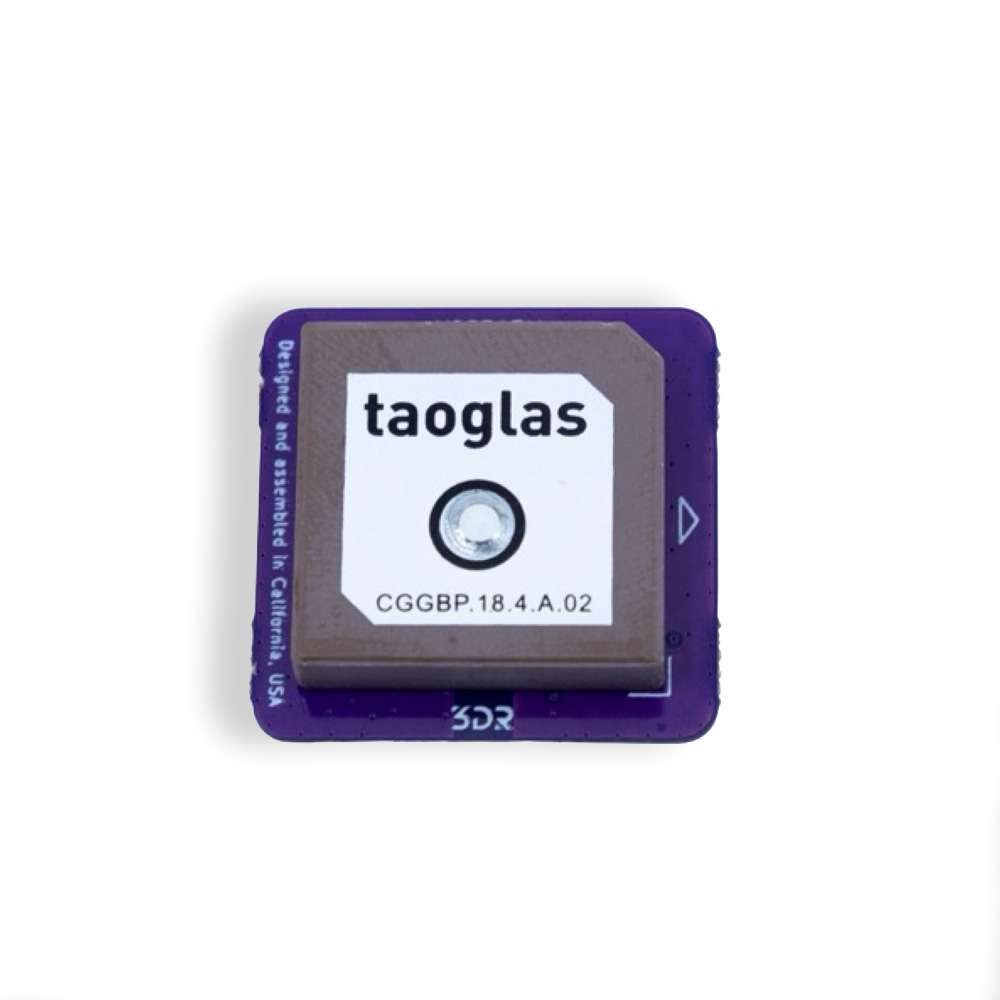

Our M10136 board is based on the uBlox MAX-M10S GNSS module with the IST8308 compass.
3D View
Specifications
| Specifications | 3DR MAX GPS + IST8308 Mag M10136 |
|---|---|
| Compass | IST8308 |
| Operating Temperature | -20 to 80 °C |
| Dimensions | 23mm x 23mm |
| Weight | 8.24 grams |
| Mounting Holes | None |
| Connectors | 6-pin JST-GH GPS pinout |
Firmware
There are no firmware updates for MAX based modules.
This module is compatible with:
ArduPilot
- Arducopter 4.x
- ArduPlane 4.x
- ArduRover 4.x
PX4
- v1.8 (and further versions)
Usage Guide
All connectors follow the Dronecode connector standard, which makes for plug and play experience with other compliant boards.
Pinout
GPS Port
| Pin | Color | Signal | TTL/Voltage Level |
|---|---|---|---|
| 1 | red | VCC | 5V |
| 2 | black | RXD | 3V3 |
| 3 | black | TXD | 3V3 |
| 4 | black | I2C_SCL | 3V3 |
| 5 | black | I2C_SDA | 3V3 |
| 6 | black | GND | N/A |
Wiring
This table indicates the wiring between the autopilot and the GNSS module.
| Autpilot | GNSS |
|---|---|
| VCC | VCC |
| TX | RXD |
| RX | TXD |
| I2C_SCL | I2C_SCL |
| I2C_SDA | I2C_SDA |
| GND | GND |
Downloads
Not available yet, contact us for more information.
